Cinema Compact Camera with EF mount.
Compact 5.7K Super 35mm Cinema Camera
With its 5.7K Super 35 mm Sensor is tailor-made for handheld shooting, but also for use on gimbals, drones and
The EVA1 is well suited for independent filmmaking, documentaries and music videos as well as camera B for
- 5.7K Super 35mm sensor (5720x3016)
- 14 stops of dynamic range
- Dual sensitivity ISO 800 & 2500
- EF Mount
- 4K 10 bit 4:2:2 & RAW
- 422 10-bit & RAW
- Video Codec up to 400 Mbps for Robust Recording
- V-log & V-gamut: 14 stops dynamic range
- SD Card recording
- 5.7K RAW Output (future update)
- XLR Audio
- HDMI & SDI 4K Video Outputs
- 1.2 kilograms
- 17 x 13.5 x 13.3cm (LxHxW)
Dual Native ISO of 800 & 2500
The EVA1 includes dual native ISO like the VariCam 35, VariCam LT and VariCam Pure, Utilising a process that
allows the sensor to be read in a fundamentally different way, dual native ISO extracts more information from the
sensor without degrading the image.
This results in a camera that can switch from a standard sensitivity to a high sensitivity, while maintaining the
same dynamic range and V-LOG curve without any electronic gain. Dual native ISO is allowing cinematographers to
use less light on set, saving time and money, as well as allowing for a great variety of artistic choices.
V-Log / V-Gamut
The ability to capture accurate colours and rich skin tones is a must for any filmmaker.
Like the VariCam Lineup of cinema cameras, the EVA1 contains V-Log/V-Gamut capture to deliver broad colours
with a capability of creating 14 stops of dynamic range.
V-Log has log curve characteristics that are somewhat reminiscent of negative film and V-Gamut delivers a colour
space even larger than film gamut and BT-2020 gamut. The EVA1 will also import the celebrated color science of
the VariCam line.
High Frame Rate Recording 4K 60 fps/2K 240 fps
Users can choose between MOV wrapped codecs up to 10-bit 422 even in 4K, as well as AVCHD.
Capturing internally in 4K, UHD, 2K, Full HD and HD, the EVA1 offers up to 59.94fps/50fps for 4K/UHD, up to
120fps/100fps for 2K/Full HD (without cropping), or 240fps/200fps (4/3”cropped area) for high-speed capturing.

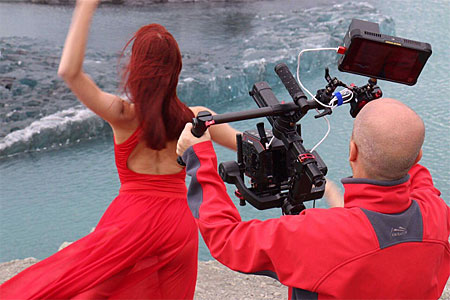

Cinematic Run & Gun
Weighing only 1.2Kg (body-only) with a compact form factor (17cm x 13.5cm x 13.3cm) and a removable
handgrip, EVA1 can be used for efficient handheld shooting applications and can also be mounted on a drone,
gimbal rig, or jib arm for complex yet smooth camera moves.
The adjustable handgrip offers several controls, including menu, REC start/stop, iris and two user defined buttons.
The LCD monitor features a touch-panel function and allows flexible mounting.
Low-Cost Media / SD Card Recording
EVA1 records to two SD card slots, with the option to capture footage with Relay Rec (continuous record) or Simul
Rec (simultaneous dual record).
There’s also one shot record, which enables single frame video for stop motion capture.
The camera utilizes a native EF-mount, giving shooters access to the broad EF lens ecosystem, including dozens of
cinema-style prime and zoom lenses from numerous manufacturers.
E.I.S. & Integrated ND Filters
Electronic Image Stabilisation (EIS) is employed to compensate for camera shake and blurring, which will help
smooth out handheld or shoulder-mount shots on documentary or run-and-gun projects.
Behind the lens mount, an integrated ND filter wheel in 2, 4, and 6 stops allows for precise exposure control.
The EVA1 also allows the IR Cut filter to be swung out of the path to the sensor at the push of a button.
Unique photographic effects and night vision imagery are possible with this control over infrared.
