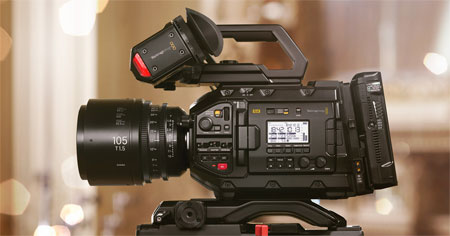

Blackmagic Design URSA Mini 4K Digital Cinema Camera (EF-mount)
Have a Super-35mm 4K, global-shutter sensor with 12 stops of dynamic range.
The ergonomic body design is balanced and can be used for many different styles of filmmaking.
The EF-Mount is compatible with a plethora of popular lenses, opening different aesthetic options.
A rosette on the side of the camera accepts the included side handle, which can control Start/Stop via a LANC
- 4K Super-35mm CMOS Sensor
- 4000 x 2160 Video up to 60p
- Compressed and uncompressed Raw Recording
- 12G-SDI Output, Timecode and REF Input
- 2 XLR Audio Inputs with Phantom Power
- Dual CFast 2.0 and SDHC/SDXC Memory Card Slots
- Ready-to-Edit ProRes 444 + 422 Recording
- By default the URSA Mini Pro includes EF mount
- Interchangeable Lens Mounts (Nikon F, PL, B4 with optional adapter)
- Magnesium Alloy Body
- Touchscreen Interface

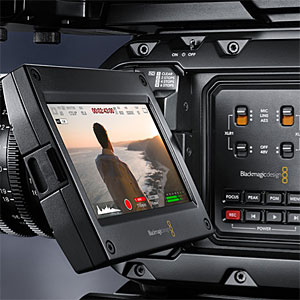

- 1080p Flip-Out Screen
To produce cinematic images, the URSA Mini can record raw sensor data in the CinemaDNG format onto CFast 2.0
memory cards at up to 60 fps.
The raw files preserve the full dynamic range and color tonality output from the sensor, so you can have greater
control over the look in post-production.
However, data-heavy uncompressed raw files aren't always easy to deal with on set, so in addition to
uncompressed raw recording, the 4K URSA Mini provides compressed raw recording at a 3:1 compression ratio to
save space while retaining post-production flexibility.
UHD 4K (3840 x 2160) and 1080p video
The URSA Mini also records UHD 4K (3840 x 2160) and 1080p video using ready-to-edit ProRes files in many
different flavors within the 444 and 422 chroma subsampling variations, depending on your workflow.
Starting at the high end, UHD footage can be recorded in ProRes 444 XQ at a rate of 312.5 MB/s all the way down
to 1080p in a ProRes 422 Proxy file coming in at a relatively paltry 5.6 MB/s data rate.
Since the camera accepts dual CFast cards, you can record for long periods of time by having the camera switch
cards when one is full.
4-pin XLR powerjack
Power for the URSA Mini can be supplied via a 4-pin XLR jack at the rear of the camera.
With an optional plate, the URSA will accept professional V-Mount or Gold Mount batteries on the back.
Once connected to power, the URSA can even distribute power through a second 4-pin XLR jack.
User-Interchangeable Lens Mounts
By default the URSA Mini Pro includes an interchangeable EF mount.
But, if you want to use lenses with F (Nikon), PL, or B4 mounts, separately available interchangeable mounts can
Having an interchangeable lens mount allows the URSA Mini Pro to be used in nearly any kind of workflow, from
documentary, to ENG or EFP, and cinema.
For ENG lenses, a 12-pin Hirose connector will power the servo so all lens functionality can be utilized.
